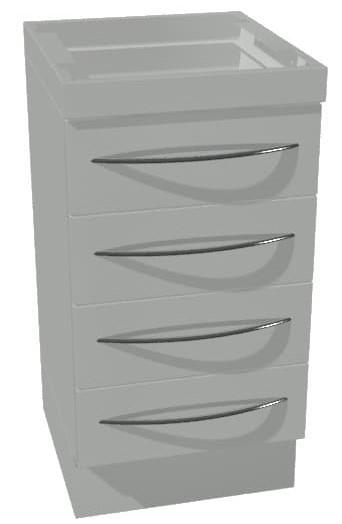

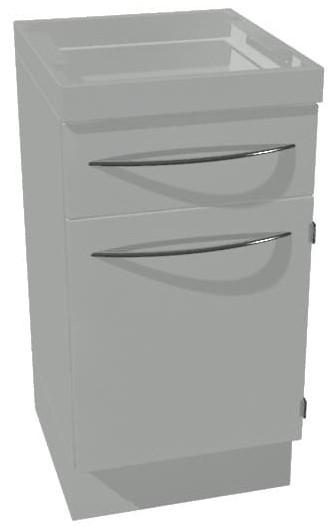

Cabinet On Plinth

Entirely built of cold-laminated galvanized steel, for placement under the metal structure and worktop. Cabinet Steel has undergone the processes of lamination, degreasing, electrolytic zinc coating, phosphating, chroming, cold-cutting and cold-forming.
The steel is protected by an organic coating of epoxy-polyester resin applied electrostatically.
Door panel reinforced where secure hinges are screwed and consist of a double steel panel with a non-friction polyvinyl chloride coating. Hinges shall be removable; 270º opening hinges.

Compliance with the following standards: “UNE EN 14727:2006”

Laboratory furniture - Storage units for laboratories - Requirements and test methods.

The model tested satisfactorily fulfils the specifications for the standards applied in the following sections:

TESTS

RESULTS

- Sect. 6 - General safety requirements

- Sect. 7.1.1 – Stable position of the shelves

- Sect. 7.1.2 – Deflection of shelves

- Sect. 7.2 – Strength test of shelf supports

- Sect. 7.3.2 – Strength of pivoted doors

- Sect. 7.3.4 – Durability of pivoted doors with hinges (n= 50.000 cycles)

- Sect. 7.5.2 – Slam open of drawers

- Sect. 7.5.3 – Strength of the drawers

- Sect. 7.5.4 – Durability of the drawers (n= 50.000 cycles)

- Sect. 7.5.5 – Displacement drawer bottom

- Sect. 7.7.2 – Static load on top surfaces of storage units

CORRECT
