Cabinet Suspended

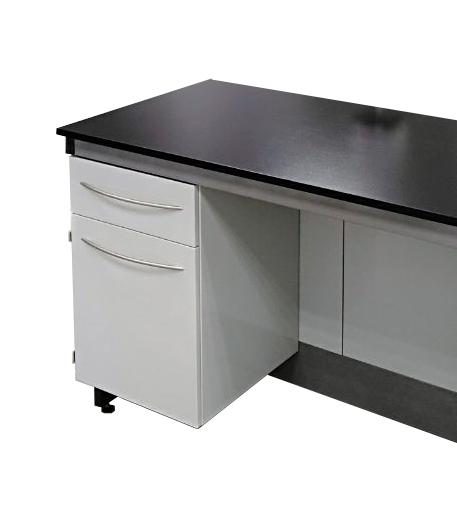

Cabinet under Bench C frame for easy cleaning, made of Steel Epoxy coated under different sizes: 450 mm, 600 mm and 900 mm.
It can have:

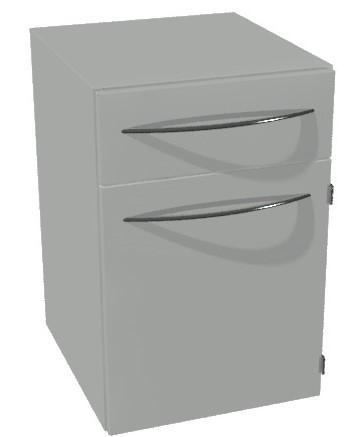

· 1 door 1 drawer

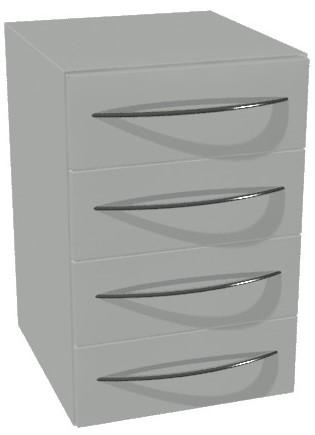

· 4 drawers

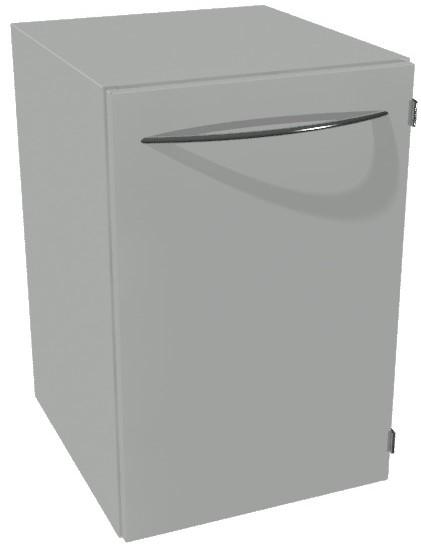

· 1 door
General Characteristics
Entirely built of cold-laminated galvanized steel, for placement under the metal structure and worktop. Cabinet steel has undergone the processes of lamination, degreasing, electrolytic zinc coating, phosphating, chroming, cold-cutting and cold-forming.
The steel is protected by an organic coating of epoxy-polyester resin applied electrostatically.
Door panel reinforced where secure hinges are screwed and consist of a double steel panel with a non-friction polyvinyl chloride coating. Hinges shall be removable; 270º opening hinges.
Compliance with the following standards: “UNE EN 14727:2006”
The model tested satisfactorily fulfils the specifications for the standards applied in the following sections:
| TESTS | RESULTS |
|
- Sect. 6 - General safety requirements - Sect. 7.1.1 – Stable position of the shelves - Sect. 7.1.2 – Deflection of shelves - Sect. 7.2 – Strength test of shelf supports - Sect. 7.3.2 – Strength of pivoted doors - Sect. 7.3.4 – Durability of pivoted doors with hinges (n= 50.000 cycles) - Sect. 7.5.2 – Slam open of drawers - Sect. 7.5.3 – Strength of the drawers - Sect. 7.5.4 – Durability of the drawers (n= 50.000 cycles) - Sect. 7.5.5 – Displacement drawer bottom - Sect. 7.7.2 – Static load on top surfaces of storage units |
CORRECT CORRECT CORRECT CORRECT CORRECT CORRECT CORRECT CORRECT CORRECT CORRECT CORRECT |
Cabinet suspended 3D:
Dimensions: (mm)
